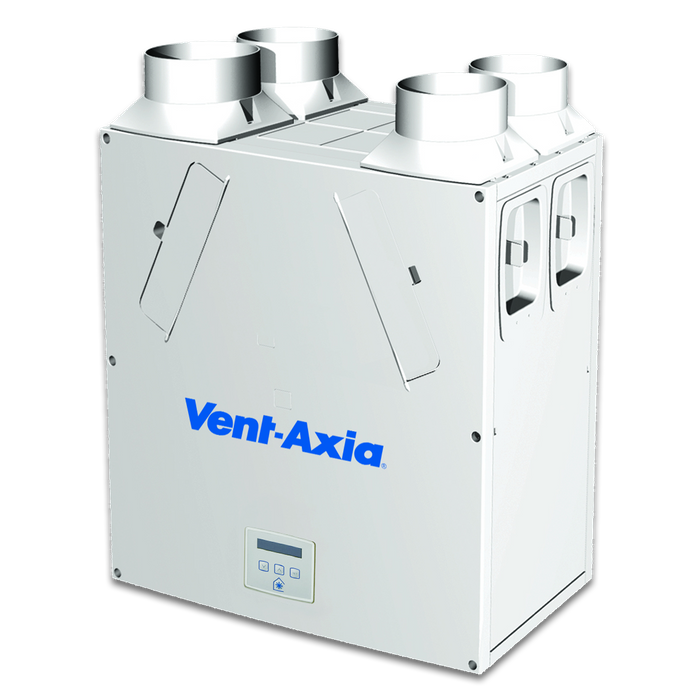

Vent-Axia Lo-Carbon Sentinel Kinetic BH Heat Recovery Ventilation (MVHR) Unit
)
The Vent Axia Lo-Carbon Sentinel Kinetic BH is the one of the UK's best performing low energy, low running cost MVHR systems for properties up to 100m2 and offers excellent value for money. With 3 fully adjustable speeds and a purge setting, the unit can be programmed according to your requirements and to meet the requirements of the Building Regilations Part F.
Available in right and left handed options for varying condensate connections, the unit has a built in humidity sensor for boosting the unit when higher ventilation rates are required.
| Dimensions: | 550mm x 550mm x 285mm |
| Weight: | 15kg |
| Duct Diameter: | 4 x 125mm |
| Airflow rate Max: | 77.7 L/S |
| Airflow rate at 100Pa: | 68 L/S |
| Max Floor Area: | Up to 100m2 |
| Heat Recovery Efficiency: | Up to 90% |
| Sound Levels db(A) @ 3m: | 16-39db |
| Mounting: | Wall & Floor |
| Warranty: | 5 years |
| Manufacturer SKU: | 443319L |
| Filters: | Standard G3 - Upgrade options available G4 (Dust Destroyer) Filter for Vent Axia BH, M5 (Summer Sneezer) Vent Axia BH Filter |
)
)
)
)
)
)
)
)
)
)
